For Android version only
Audio and video recordings for future use when needed or to recall a moment, scene, or interaction after creation are available both in the central repository and on the map as a separate layer of user stories and thoughts tied to geolocation.
NOTE: As of March, 2022, the audio/video notes functionality is available for Android only.
The Audio/Video Notes plugin extends the functionality of storing geolocation information by giving the user the ability to create their own views in various formats, such as a photo note, video note, or audio file, and associate them with their geographic location or current location. The recording options are provided with the Audio/video notes widget, and/or the context menu of a POI. The resulted data is automatically saved to the central storage from where it is convenient to manage and share anything needed.
At the same time, all created audio/video notes make up a Recording layer that if configured to show up on the map, provides a different view of the recorded data and means for managing it. Within the Recording layer, the audio/video notes are laid out as POIs across the map, thus creating a user-made map narrative, visible only to the owner of the device.
The audio/video notes are provided with the Audio/video notes plugin, and require the following setup:
If needed, add the widget to the device screen, and/or configure.
If needed, configure the recording settings per profile.
The Audio/video notes plugin is required to work with the audio/video notes: from creating the notes to viewing them in My Places, and showing on the map. All audio/video notes will be hidden from the map and from My Places, if the plugin is disabled.
To enable the plugin, tap the triple dots beside the enabled Audio/video notes option in the list of plugins and select Enable.
Android: Menu → Plugins → Audio/video notes

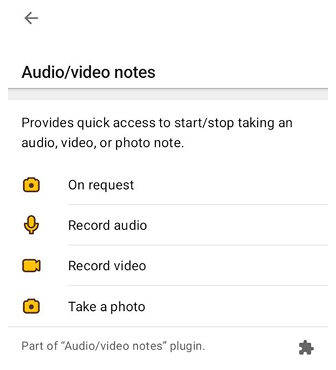

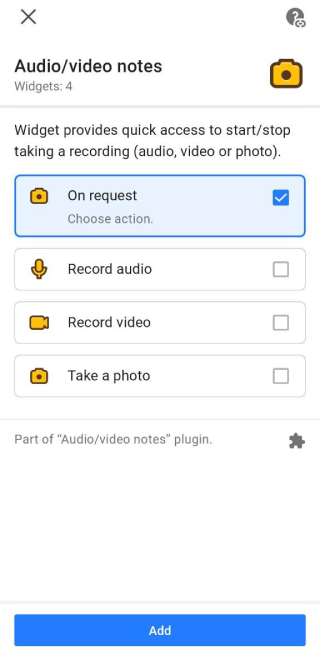

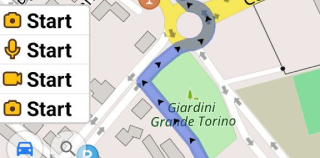

Add Configure widget
The Audio/video notes widget makes records (i.e. photo, audio, video) and ties them to the current position of the user. The widget has several options that can be set up as the default action performed by the widget on tap.
Adding the widget to the screen is needed when you would rather skip looking for a geolocation on the map and by default link the notes to your current position. To add, and/or configure the widget, do the following:
Open Menu → Configure screen
Select Left panel or Right panel.
Tap Audio/video notes and the context menu of the widget opens.
Select an option you prefer to do by default by tapping the widget:
On request - to open a choice of options;
Record audio - to immediately start to record an audio message;
Record video - to immediately start to record a video;
Take a photo - to immediately start taking a photo.
For every profile, it is possible to configure the recording settings. There are two options of how to open the Audio/video notes settings:
from the plugin, so that to configure recording only for the default profile;
from the app settings, so that to configure recording for any of the profiles.
From the plugin, the Audio/video recording settings are opened by selecting Settings from the triple dots list of the plugin in:
Android: Menu → Plugins → Audio/video notes → Settings
From the settings of the entire app, the Audio/video recording settings can be opened as follows:
Go to: Menu → Settings.
Select a profile.
Tap the Audio/video notes option.

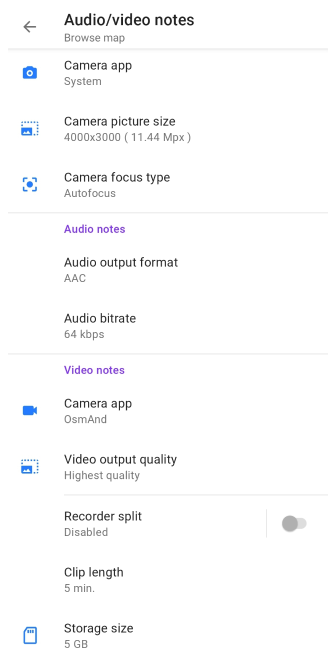

The way the Audio/video recording will work can be determined with the settings described below. Establish the parameters as needed.
|Use system app in Photo notes||If enabled, OsmAnd uses the system application to create photos.|
|Camera picture size||This establishes a size for photos to take in. The number of available options is determined with the capabilities of the device camera. If no option is selected, the app uses the size that is established in the system settings for the device camera.|
|Camera focus type||This establishes the method of how focus is set by the camera. The number of available options is determined with the capabilities of the device camera. Basically, there are the following three options: Autofocus; The camera continuously tries to focus; and Focus is set to infinity, where autofocus is the most popular one and establishes the automatic mode for the camera to focus by rotating the lens focus ring; continuous one makes the camera detect movements and refocus accordingly; and the infinity option makes the lens to focus on a distance and thus keep everything extraordinarily wide in focus no matter how far it is.|
|Camera shutter sound||If enabled, a sound is produced on closing the camera.|
|Audio output format||This provides a choice of formats for an audio file to be created in. The number of options available as well as which one is used as default are determined with the parameters of a specific device.|
|Audio bitrate||This provides a choice of bitrate options for an audio file to be created in. The available bitrate options range from 16kbps to 128 kbps, or the Default option. The default option is determined with the default microphone settings of the device.|
|Use system app in Video notes||If enabled, OsmAnd uses the system application to record video.|
|Video output quality||This provides a choice of options that determine the format of the output image. The number of options available is determined with the parameters of a specific device. The default option is the Highest quality option.|
|Recorder split||If enabled, old video recordings will be automatically re-written and replaced with new video recordings if the storage size reaches the established size limit.|
|Clip length||This determines the upper time limit for recorded video clips. There are options with the range from 1 minute to 30 minutes.|
|Storage size||This establishes the size of the storage intended for recorded video. There are options with the range from 1024 MB to 62 GB. A specific range of options, as well as the default option are determined with the parameters of a specific device. A system message will remind on the storage size reaching the established limit.|
|A/V notes||This re-directs you directly to the Audio/video notes in My Places. This is the central storage of all Audio/video notes ever made in the app.|
|Reset plugin settings to default||This establishes the default values for all of the above settings.|
|Copy from another profile||This opens a dialog to select a profile to copy the established Audio/video note recording configuration of values from, and further to establish them for the current profile.|
You can manage your information, thoughts, ideas, etc. tied to a geographical place, as follows:
- create a note;
- view all notes as a list in My Places;
- show the specific note on the map;
- rename a note in My Places;
- show all notes on the map;
- play the note;
- create waypoints in a track;
- export to JOSM;
Create a note
You can create a photo, video, and/or audio note in any of the following ways:
- with the Widget - if the note should be tied to your current geographical position;
- with the Context menu of a point on the map - if the note should be tied to the selected point on the map.
1. Create and tie to your current position
To create a note tied to your current position, and thus, avoiding any search of a suitable point on the map to tie the note to, the Audio/video notes widget is used: tap the widget, and make the note.
The functions provided by the Audio/video notes widget depend on how it is configured in the Configure screen menu. The widget either immediately opens the camera to make a note, according to the established settings, or asks first what format to create a note in, and then opens the respective recorder dialog.

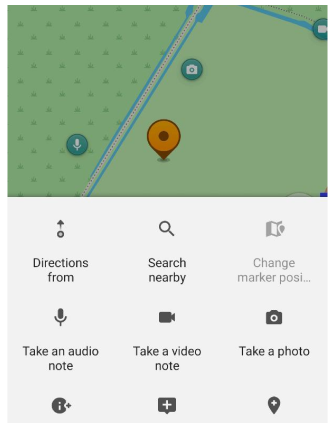

2. Create and tie to selected geolocation

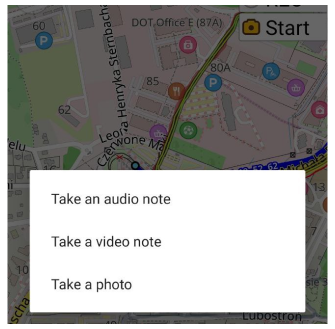

To create a note tied to a selected point on the map, the Context menu of the point is used, as follows:
Long-tap a point on the map, and the Context menu opens.
Tap Actions, and select one of the available options from the list:
- Take an audio note - to make an audio note and tie it to the selected point on the map;
- Take a video note - to make a video note and tie it to the selected point on the map;
- Take a photo - to make a photo note and tie it to the selected point on the map.
Depending on the selected format of the note, the respective recorder dialog opens.

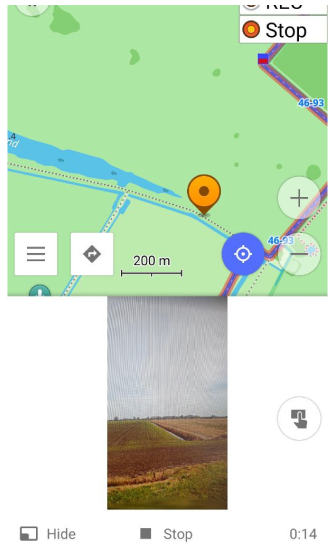

For an audio / video note, respectively the audio, or video recorder shows up. And you can:
- stop the recording with the Stop icon,
- see the length of the record,
- hide/show the video screen.
NOTE: Also, it is possible to stop the recording with a tap on the Audio/video notes widget, regardless of whether the Context menu, or the widget started the recording.
For a photo note, the camera functionality shows up, and you can take a photo, view the result, and accept and save it, or take a new photo.
NOTE: Automatically, all photo, audio, and video records are saved to: Menu → My Places → A/V notes tab.

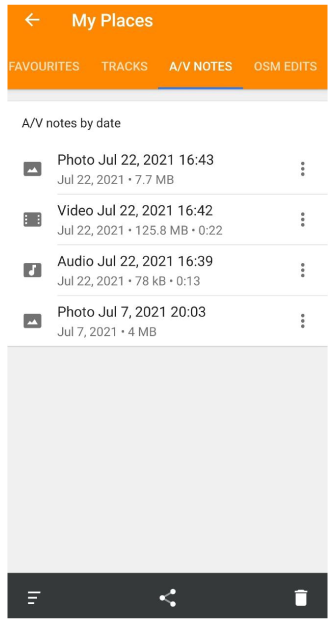

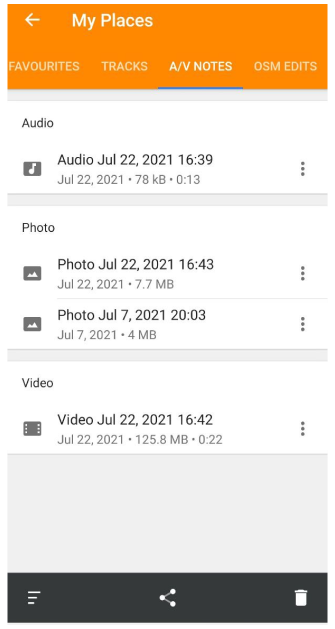

View in My Places
My Places is the central storage for all notes. It allows you to view all notes listed as a list; open a specific note; and to manage the entire list of notes. To open My Places, follow the path:
Android: Menu → My Places → A/V notes
Show a note on the map
To show a specific note on the map, use the list of notes in My Places, find the needed one and tap it. As a result, the map shows up, highlights the location of the note, and opens the Context menu. It is possible to work with the note by selecting the options in the context menu.

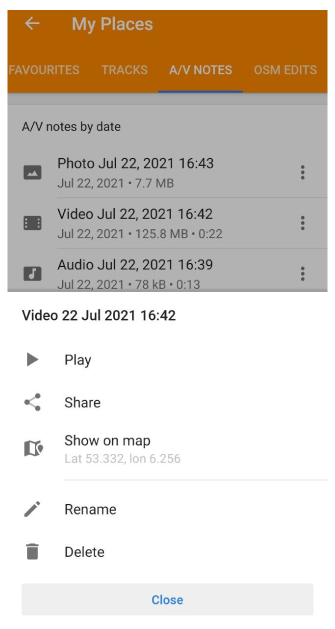

Rename and manage a note
To manage a note in My Places, tap the vertical triple points of the note in the list, and the available options show up, as follows:
- Watch / Play - to play/show the note,
- Share - to share the note,
- Show on map - to show the linked place on the map and the Context menu,
- Rename - to rename the note,
- Delete - to delete the note.
Manage list of notes in Places
The options on the bottom bar can be used to manage the list of notes in My Places, as follows:
- Sort - opens a choice of how to sort: by type, or date, and on selection an option, sorts the list respectively.
- Share - shows a check list of all notes, including those added as waypoints to GPX files. First, required notes are checked, then the Share icon on tap at the right-hand top corner of the screen provides the available sharing options, and finally, the checked notes are shared, according to the selected option.
- Delete - shows a check list of audio, photo and video notes only. First, required notes are checked, then the Delete icon at the right-hand top corner of the screen is clicked, and after confirmation, deletes the selected notes.
Android: Menu → My Places → A/V notes
You can share notes in two ways.
The first. Allows you to share a specific note.
- Add a note.
- Go to My Places.
- Click on the three dot menu in the box of any of the notes you want to share.
- In the list, click the share button.
- Select the app you want to share from those installed on your device.

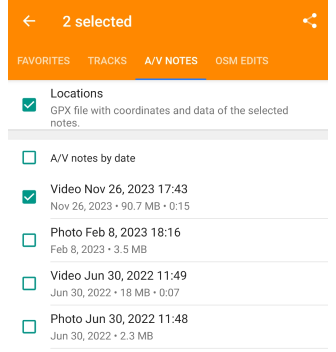

Second. Allows you to select from a list the number of notes you want to share.
- Add a note.
- Go to My Places.
- In the bottom menu is the share button, click on it.
- A checkbox will appear next to each note to select specific notes. There are two checkboxes above the notes: A/V notes by date to select all notes and the Locations checkbox. The Locations checkbox allows you to add a separate GPX file with coordinates and data.
- Choose what you need and click on the share icon in the upper right corner of the screen.
- Select the app you want to share with from those installed on your device.
NOTE. Not all app support file sharing.
Each note contains the time at which it was created, the amount of data, and if it is a record, the time of recording, location data, you can add GPX data. File formats: Audio - 3gp, Video - mp4, Photo - jpg.

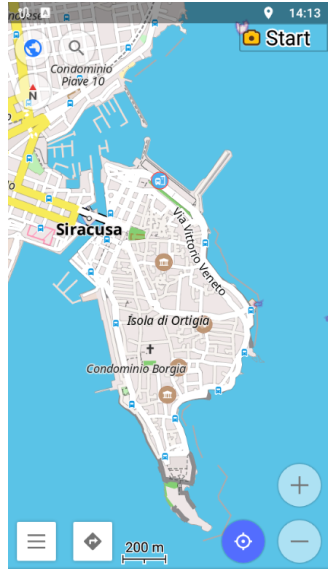

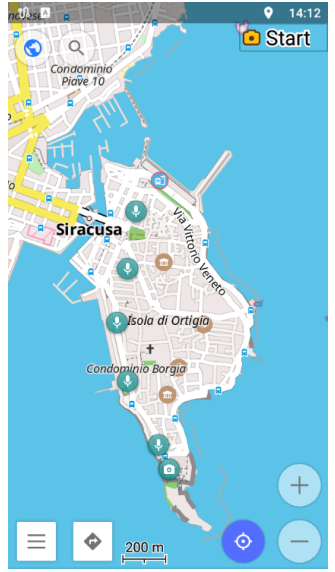

Show all notes on the map
Notes can tell you a story, once displayed on the map: e.g. where to notice signs, which door to open, how to find a way out, an optimal path to go, etc. It is possible to show all notes altogether instead of one by one.

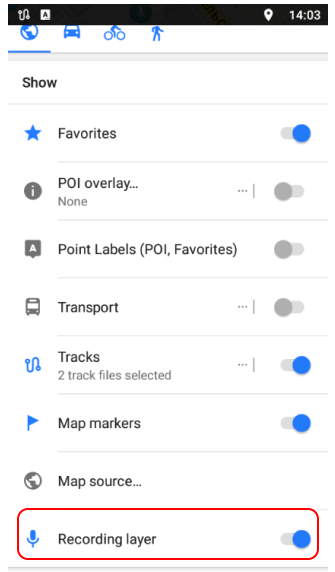

The Recording layer can be reached out, as follows:
Android: Menu → Configure map → Recording layer

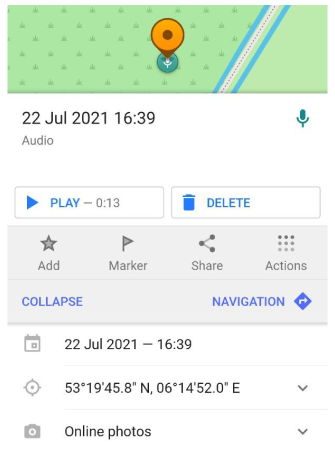

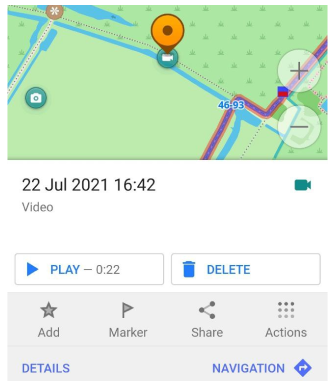

Play the note
To play a note, use the respective option in the Context menu opened for the note:
- on the map;
- in My Places.
Also, Details will help by giving more data, like: the latitude and longitude; the date and time of the record, if any photos.

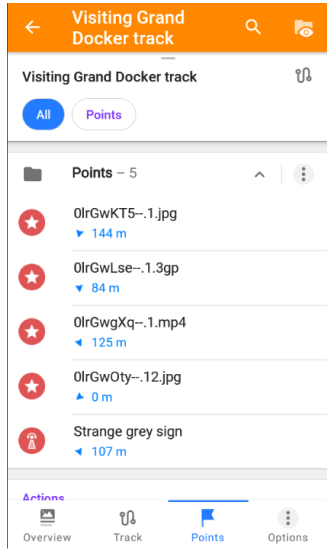

Waypoints created from notes
If an audio/video/photo note is added to a track, a waypoint is created. Waypoints exist within the track. If a track is visible, its waypoints are visible. So, audio/video/photo notes can be visible on the map altogether, or by the specific visible track. In the latter case, audio/video/photo notes are displayed as track waypoints.
NOTE: If a track is exported, the waypoints cannot be viewed, or played, because audio/video/photo notes are stored on the device only, and available only to the user of the device.
There are two ways to create a waypoint: automatically and manually.
Automatically, a waypoint is created, in case if the user takes an audio/video/photo note when the Trip recording is in progress, regardless of the geolocation if it is tied to the current position, or any place, and thus, regardless of the means used for that: if it is the Widget, or the Context menu.
All waypoints added automatically get an automatically assigned name. The name is created, according to the format specified below for an audio/video/photo file, and has a shortlink. The example of the waypoints on the figure above shows automatically and manually created waypoints, where first four were created automatically, and the last one - manually.

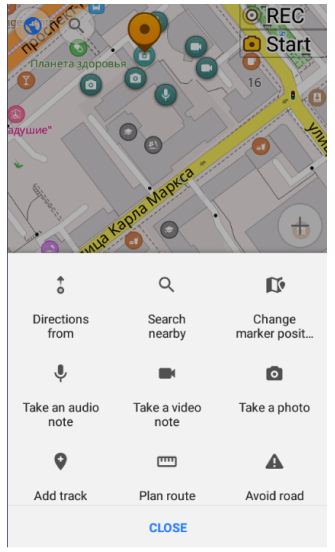

Manually, a waypoint is created via the Context menu, as follows:
- Select the required audio/video/photo note on the map;
- Tap Actions, and then tap Add track.
- Select the track that the waypoint is intended to be added to.
- The Add track waypoint dialog opens, and allows the user to set some properties, like: the name to the waypoint, an icon, color, etc. Once done, tap Save.
NOTE: The name of a manually created waypoint can be established by the user.
A waypoint is available for viewing as a waypoint on the map and in the list of waypoints of a specific track. Deleting the waypoint does not delete the respective audio/video/photo note.
An audio/video/photo note is available for viewing on the map and in the list of A/V notes in My Places. Deleting the audio/video/photo note does not delete the respective waypoint.

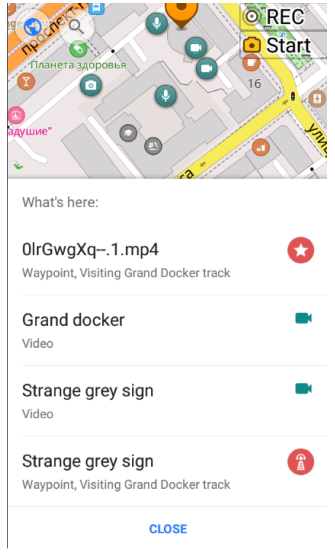

On the map, a waypoint and an audio/video/photo note can be visible, or not. It is determined by what layer is currently toggled on for the profile.
|Visible||Layer toggled on|
|Only waypoints||Tracks layer|
|Waypoints and notes||Tracks and Recording layer|
|Only notes||Recording layer|
|None||Neither Tracks, not Recording layer.|
NOTE: When neither Tracks, nor Recording layer is toggled on, both waypoints and notes can be shown by tapping them in My Places. In this case, the map shows the locations of the tapped note, or respectively, the locations of all waypoints of the tapped track.
GPX file with waypoints
If to view the GPX file of the track added with a waypoint from an audio/video/photo note, the waypoint will be like on the example below, having the coordinates, the timestamp, the name of the respective note, and the shortlink.
File name details
The Audio/video notes plugin generates audio/video/photo files in the following format:
SHORTLINK_LOCATION indicates the latitude and longitude of the location that the file is linked to. The
SHORTLINK_LOCATION is encoded, according to the specification https://wiki.openstreetmap.org/wiki/Shortlink.

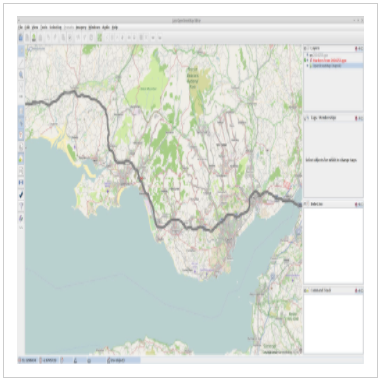

Export to JOSM
To view everything later, you can export the track together with all the media and see them in the JOSM editor. Please note that you'll need to put the media in the corresponding folder (you'll know which one if you click on a video note and see the message about a missing file. Just put it in the indicated folder).
So there you have it: your personal notes linked to the map and stored in one place. Document your adventures!
