Smart Folder (filter)
This article is incomplete & needs to be reviewed. You can help by creating a pull request.
Overview

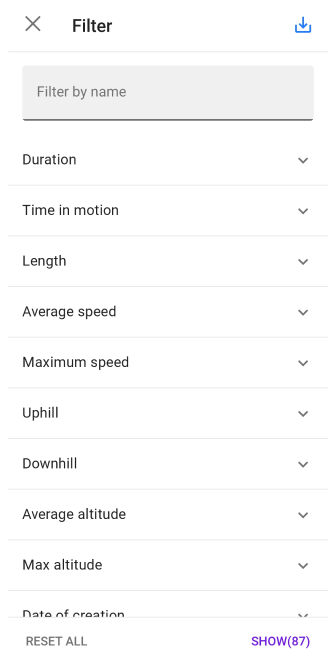

Filter
Osmand provides convenient track management tools, one of them is filtering in the Tracks tab to help organize and manage all tracks on your device, as well as more detailed and customizable track searches by various parameters to quickly find tracks that meet specific requirements.

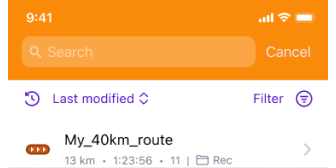

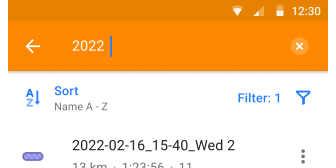

- To access the Filter screen, tap the Search icon 🔍, in the Sort by row on the right, tap Filter.
- After selecting the required filters, tap the Show button in the lower right corner of the screen. The number of filtered tracks is displayed in brackets.
- You can clear all configured filters using the Reset all button.
- The configured filter set can be saved as a new Smart folder using the button in the upper right corner of the screen.
Available filters
Filter by name
- This filter allows you to search for tracks by their title.
- Enter a title or part of a title to filter tracks matching the specified text.
Folder
- The Folder filter allows you to search for tracks in one or more existing folders.
- Select the needed folders to display the tracks in the search list.
Duration
- This filter allows you to customize your search by the duration of the recorded tracks.
- You can select a duration range in hours and minutes to find tracks matching your time limit.
Time in motion
- This filter helps you find tracks during which you were in motion.
- Select a range of time in motion to display tracks that match your parameters.
Length
- This filter allows you to customize your search by track length in kilometers or miles.
- Specify the required length range to find tracks of a specific length.
Average speed
- This filter helps you sort tracks by average speed.
- Select the average speed range to search for tracks.
Sensor data group
- Sensor speed, average.
- Sensor speed, max.
- Heart rate, average.
- Heart rate, max.
- Bicycle Cadence, average.
- Bicycle Cadence, max
- Bicycle Power, average.
- Bicycle Power, max.
- Temperature, average.
- Temperature, max.
Max speed
- This filter allows you to search for tracks with a specific maximum speed.
- Select from the suggested range of maximum speed values to find tracks that match this parameter.
Uphill
- This filter searches for tracks that go up a slope or have a positive elevation.
- Tracks that include sections with the selected uphill are displayed.
Downhill
- The Downhill filter searches for tracks that are descending or have a negative elevation.
- Finds tracks that include downhill sections for the selected values.
Average altitude
- This filter helps you find tracks based on average altitude.
- Specify a range of average altitude to find tracks with these parameters.
Max altitude
- This filter searches for tracks according to their maximum altitude above sea level.
- Specify a range of maximum altitude to find tracks matching the selected parameters.
Date of creation
- The Date of creation allows you to filter tracks by date.
- Specify the required time period to find tracks that were created then.
Nearest cities
- The filter allows you to search for tracks that pass close to specific cities or settlements.
- Select one or more locations to find tracks passing through them or nearby.
Country
- This filter allows you to search for tracks recorded in a specific country or region.
- Select specific locations to find related tracks.
Color
- The Color filter helps you search for tracks by colors that have already been applied to the appearance of existing tracks.
- Select one or more colors, or Not specified for items that do not have a specified color, to find the tracks you need.
Width
- This filter searches for tracks according to their width. Only the parameters that existing tracks have are listed.
- Select one or more parameters or Not specified to find tracks with a specific width or without this attribute.
Other
The filter provides additional options for finding and filtering tracks that have special characteristics.
- Visible on Map. With this feature, you can find tracks that you have selected to be shown on the map.
- With Waypoints. This filter helps you find tracks that contain waypoints, places that were marked during track recording, for example. With this filter, you can easily find tracks with important waypoints, such as vacation spots or notable events on your trip.
Smart folder
Smart Folder is a special type of folder that provides intelligent and automated features for organizing and managing tracks.
- Automated organization. Smart folder can automatically sort files within itself based on specified rules or criteria. For example, you can set up a Smart folder so that all tracks created on a certain date are automatically moved to that folder.
- Filtering and searching. This folder can provide options to quickly search for tracks within itself using various filters and keywords. These help users to quickly find the tracks they are looking for.
- Dynamic Refresh. Smart folder can dynamically update its contents based on Refresh function. This allows you to always have up-to-date information inside the folder.
- Customize Rules. You can customize rules that determine which files should be included in the Smart folder.

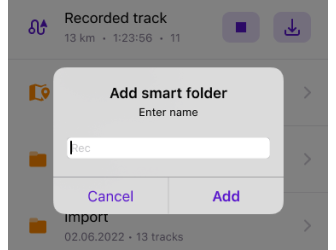

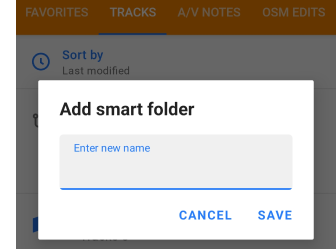

Create Smart folder
To create a smart folder, follow these steps:
- Tap the three-dot menu icon in the upper right corner of the screen in the Tracks tab.
- Select the Add smart folder option from the menu that appears after tapping the icon.
- Set the parameters of the smart folder:
- Name the folder (Enter a new name) for identification.
- Specify track filter parameters from the Filter list. These parameters determine which tracks will be automatically displayed in the smart folder.
- Save the settings. Tap Show in the lower right corner of the screen, and then tap the Save button.
After completing these steps, the Smart Folder will automatically collect and display tracks matching the specified filter parameters.

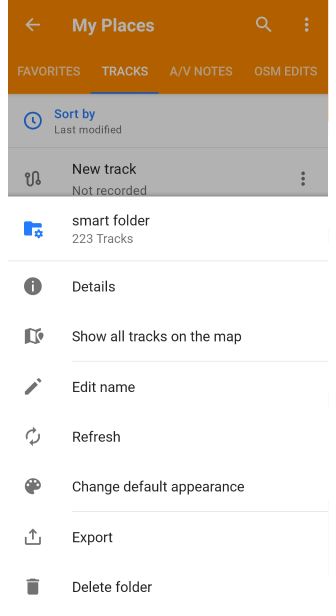

Folder menu in Tracks tab

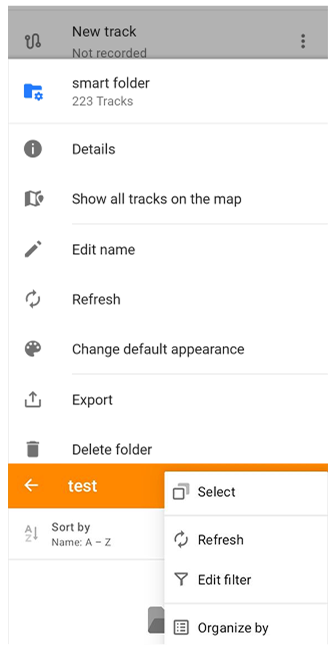

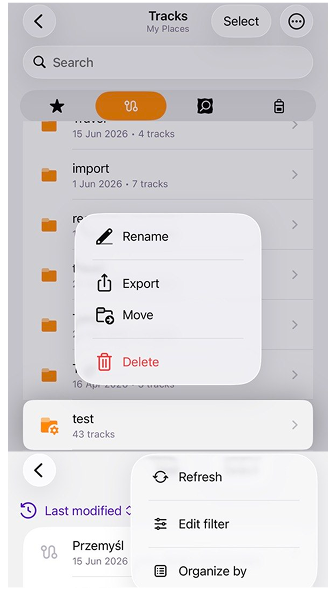

Once created, the Smart folder is displayed with a special icon in the folder list in the Tracks tab. To manage it, tap the three-dot menu in the folder field.
- Details. Opens the entire list of tracks in this folder.
- Show all tracks on the map. If there are many tracks in a folder, it is not recommended to map them all, it may take a long time.
- Rename. Changing the folder name.
- Refresh. Allows you to update the track list.
- Edit filter. You can change the track filter settings for the current Smart folder.
- Export. You will go to Menu → Settings → Actions tab, where you can export all tracks from the folder.
- Delete folder. You can only delete the Smart folder, not the tracks. A warning message will appear on the display. The deletion will be irreversible.

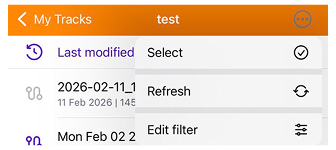

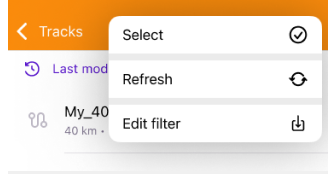

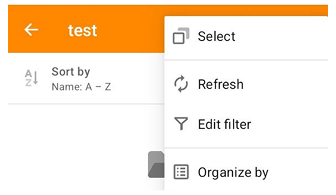

Internal folder menu

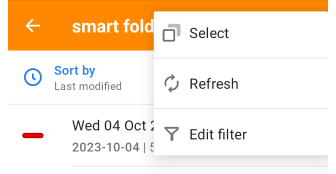

Go to the Smart folder and tap the menu with three dots in the upper right corner of the screen. The following actions are available in this menu:
- Select. Allows you to select all or only certain tracks for further interaction with them.
- Refresh. Updates the track list according to the specified filters.
- Edit filter. Moves to the Filter screen where you can configure track filtering for the folder.
Select in Smart folder
This screen allows you to select the tracks you want, as well as a list of suggested actions:
- Show on map. Unlike Show all tracks on the map, this function allows you to customize the display of tracks selectively.
- Share. Allows you to export tracks using Export to File.
- Upload to OpenStreetMap. You can load the selected tracks into OpenStreetMap.
- Move. Moving selected tracks to another folder.
- Change appearance. Allows you to change the appearance of all or specific tracks in a folder.
- Delete. Deletes only the folder with its settings. The tracks displayed in this folder are not deleted.
Export tracks from Smart folder
Exporting tracks that are in the Smart folder is available through the menu in the folder field of the Tracks tab.
- Tap the three-dot menu, then select Export.
- You will go to screen Menu → Settings → Export to File → My Places → Tracks.
- Tap Continue and select an available resource to export the osf file.
Settings and the Smart folder itself belong to Global Settings, so you can export, import and save it to Cloud by selecting OsmAnd Settings in Menu → Settings → Export to File → Settings.
You can export tracks using the Select menu item in the three-dot menu within a folder.
- Tap Smart folder in the folder list.
- Tap the three-dot menu in the upper right corner of the screen.
- From the three-dot menu, choose Select, then Share.
