Android Auto

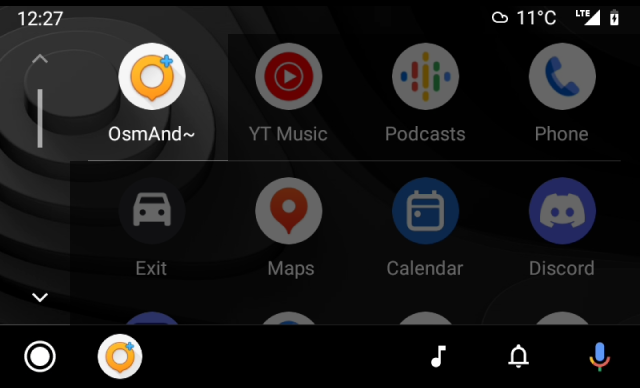

Overview

Android Auto is software developed by Google that allows users to connect their Android devices to compatible vehicle multimedia systems. Android Auto provides an adapted and optimized version of the OsmAnd app for safe use while driving, making it easier and more secure to access the app's navigation functions.

• Android Auto function is only supported when using the OsmAnd app available in the Google Play store.
• If you have purchased OsmAnd Pro from the Amazon store, you can activate it in the OsmAnd Free version app downloaded from the Google Play store.
• After this activation, you can use the Android Auto function for which you purchased a subscription to OsmAnd Pro in another app store.

Note: Android Auto is not a direct replication of the OsmAnd mobile app. It has a simplified interface, focusing on essential navigation functions to ensure safe driving. Some advanced features are not supported due to platform limitations.

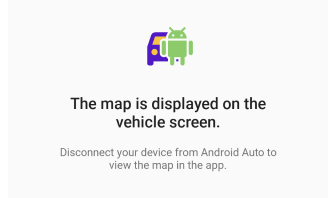

Connection Screen

While your device is connected to Android Auto, the map on the app screen is locked for security purposes.

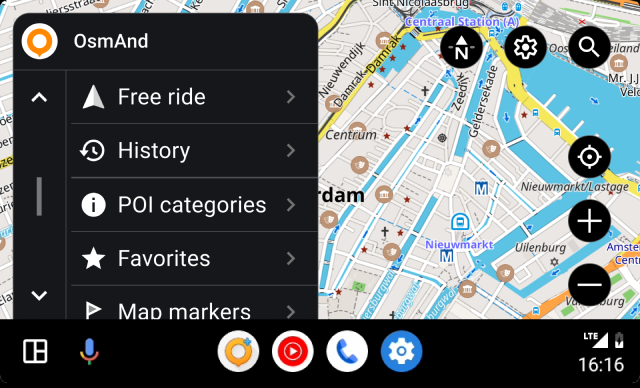

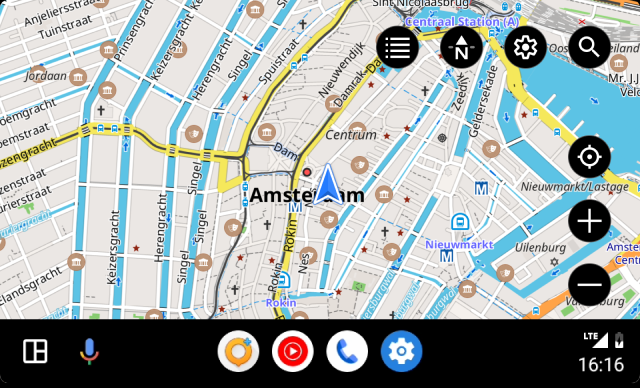

Landing Screen

When you open the application, a list of categories is displayed. For easy navigation, you can hide it by tapping the button in the upper right corner of the screen.

• Tap the menu button to hide the list of categories.
• In the upper right corner of the screen, tap the button next to the function buttons if you want to return to the list.

Interaction With the Map

Android Auto displays the OsmAnd interface adapted to the vehicle multimedia system screen. Interaction with the map is limited to buttons such as:

• OsmAnd menu. Contains a list of available options for assigning a route endpoint or a free ride.
• Settings. This button is responsible for access to turn voice promts on or off when you are navigating the selected route.
• Search. Tapping the button opens a screen with access to the search functions.
• My Location. Moves the visible part of the map so that your current location is in the center of the screen.
• Zoom. Allows you to zoom in and out of the visible part of the map.
• Compass. Shows which of the four available map orientation modes on your device's screen is selected.

Required Setup Parameters

Start Navigation

In order for OsmAnd to work in Android Auto, you must connect your Android device to your vehicle multimedia system. The Android operating system must be updated to version 6.0 or higher.

• To find out how to connect and set up your device, visit the Android Auto websites.

• Not all vehicles support device connection capability. Check the list for Android Auto.

• You need to purchase a paid version of the app or take out a subscription. Check your current subscription here Menu → Settings → Purchases.

• Android Auto uses the first OsmAnd Driving profile in the Profiles list for navigation. Set the preferred profile to first, except for the Browse map profile, it is not read by Android Auto. To do this, go to OsmAnd Menu → Settings → App profiles → Edit profile list → move your Driving profile to the first place or after the Browse map profile.

• It is important to remember that Android Auto is a data-intensive application, including mobile data, and the quality of the system may depend on the quality of your connection and the speed of your Internet access.

Profile First

You cannot select a profile directly in Android Auto on the vehicle screen.
If you already have a profile selected on your device that corresponds to the type of vehicle, such as Driving, Truck, Car, Motorcycle, Moped, the app will automatically activate the appropriate profile when you connect to Android Auto. For example, if you have a Truck profile as selected and your device connects to Android Auto, the app will activate that profile.

If you do not have any Driving profile selected on your device that corresponds to your vehicle type, then OsmAnd will automatically switch to the Driving profile. This is done to provide basic navigation and to prevent possible problems caused using the wrong profile for a specific vehicle type.

Why it's important:

1. Driving safety. Different types of transportation require different information and settings when driving. For example, truck drivers may be limited in the height, weight, and width of their vehicles, so the Truck profile provides them with appropriate restrictions and guidelines. While bicyclists and motorcyclists need information about bike lanes and routes, without data for trucks.

2. Utility and Efficiency. Navigation should be customized to meet the needs of a particular mode of transportation. This allows users to reduce the time it takes to find optimal routes and avoid unnecessary traffic restrictions.

3. Error avoidance. Switching to the Driving profile when there is no specific profile for the selected mode of transportation provides the user with constant access to the minimum necessary settings and information, thus avoiding possible errors and misunderstandings while driving.

Destination Points

You can select previously preset and added POIs, or Favorites, or Markers as a destination point. It is also possible to select a recorded or downloaded Track for the route, use the Search, or select a destination from the route History or take a Free ride.

1. If you want a particular location on the map as an endpoint, select the appropriate category of points from the list, POIs, Favorites, or Map Markers.

   • All categories can contain no more list items than are provided by your vehicle multimedia system. This means that the list in Android Auto could be incomplete and all other folders are only available in the OsmAnd app on your device.
   • The Last modified folder contains a list of recent destinations, sorted by date added or changed.
   • The list of all other folders is sorted by the most recent update, new folders are at the top of the list. It is not possible to change their order manually.
   • The list of points within folders is sorted by the distance to them, starting with the nearest. Each point has a name or coordinates, a shaped icon (color and icon set by default or chosen by you in the OsmAnd application), and the distance from the point of the current location to it.

2. Select the History category to find one of the recent destinations that are stored in the device's memory.

3. Select Search to enter a destination from the available search categories.

4. Choose Free ride to take a journey without a specified endpoint.

note

While driving, selected points can be announced when you approach or pass them. See the Voice prompts settings in the appropriate article to set up voice notifications.

History

In the History category, you can select a destination from a list of endpoints. They are sorted by most recent use, starting with the newest. This can be convenient for quick access to frequently used routes. To learn how to use or delete a destination, read the Search History article.

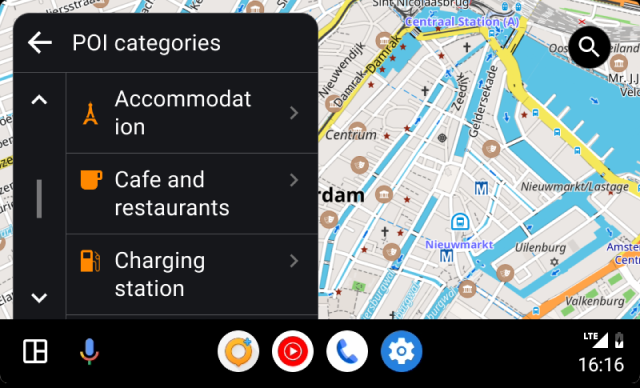

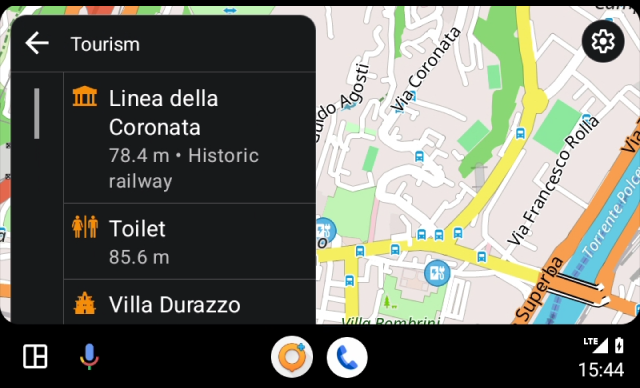

POI Categories

POIs (Points of Interest) are a type of points that identify places or objects on the map that are important or of interest to users. They are highlighted by special icons provided in the OsmAnd settings and sorted into groups.

To build a route to a POI in Android Auto, follow these steps:

1. Select the needed POI from the list of available categories, or enter the name of the POI using Search.
2. Tapping on a category opens the following screen with a list of POIs.
3. Tapping an item in the list opens the navigation screen.

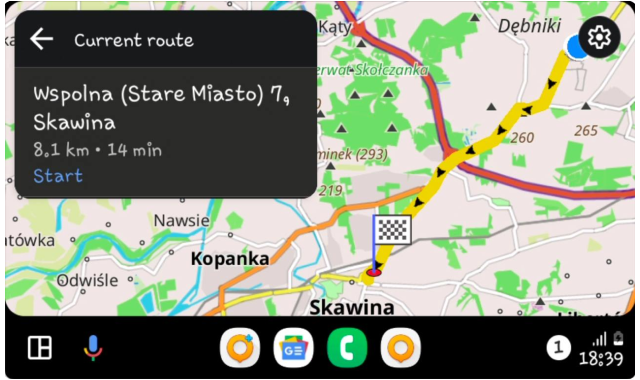

4. OsmAnd calculates the route and displays it on the Android Auto screen. Tap Start button to start navigating to that location.
5. Depending on your OsmAnd app settings and your vehicle, you may receive voice prompts to guide you to a destination.

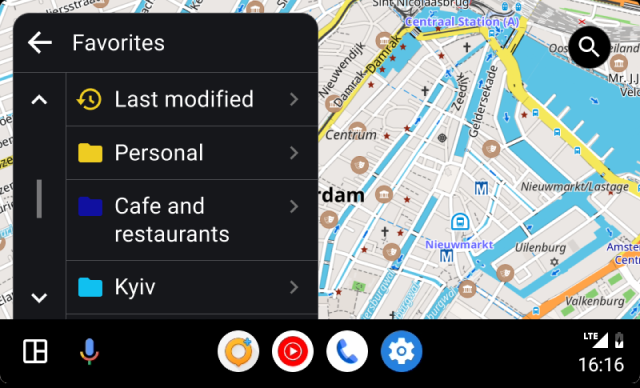

Favorites

Favorites is one of the functions of OsmAnd that allows the user to make a kind of bookmarks (notes) on the map. While using Android Auto you cannot add or modify Favorites, only use existing ones. The list of Favorites can be found in the OsmAnd app Menu → My Places → Favorites. If you want to use them for navigation, add the necessary places in the favorites before connecting the device to your vehicle multimedia system.

To create a route to a favorite point in Android Auto, follow the steps below:

1. Tapping a folder opens the next screen with a list of favorite folders.
2. Tapping an item in the list opens the navigation.

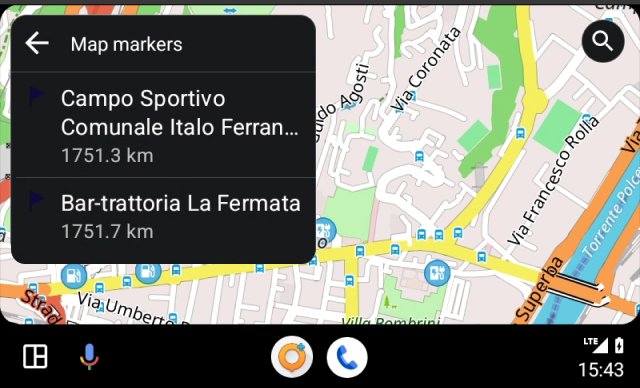

Map Markers

To define your final destination as a Map Marker, you first need to create the required number of markers in the OsmAnd app on your device before connecting it to the system. Markers need to be available in the Menu → Map marker list. This is described in more detail in the Markers article.

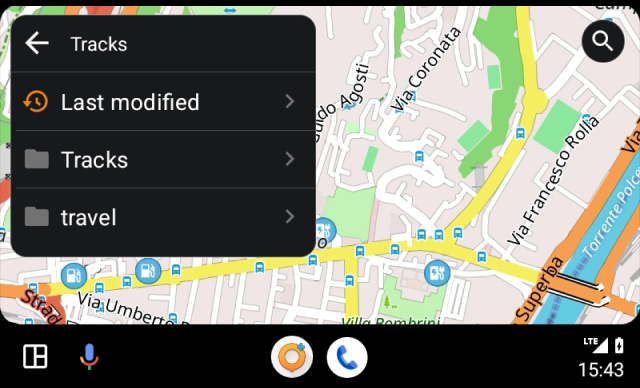

Tracks

To build a route to a destination, you can select an existing track available in the OsmAnd app. The track can be downloaded in advance, used as recorded or created in Plan a route.

From the list of tracks in Menu → My Places → Tracks, select the required one before connecting to the vehicle multimedia system, and the route will either build up to the start of the track or display the current direction along the track.

Tracks can also be selected directly on the vehicle screen in Android Auto. They are organized in folders you have created, and for easy and quick access to recently opened tracks, there is a special folder Last modified.

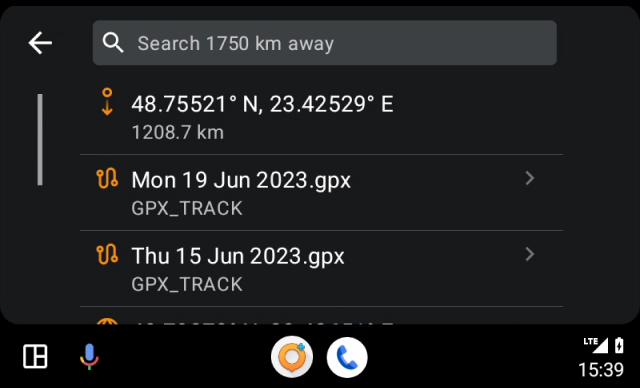

Search

Going to Search gives you quick access to a list of recent destination history. Similarly with the Navigation menu, where all OsmAnd destination methods such as an address, POIs, or coordinates are collected.

You can use the Search tool to find the required place on the map for route planning from any available search category.

• Address - start typing the address in the search field.
• POI and Custom POI- the list of nearby similar names will also display POIs or their categories.
• Coordinates search - enter the coordinates to find the point on the map.

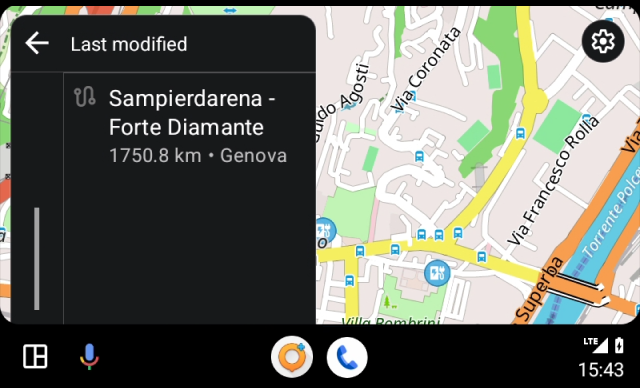

Folder Last Modified

The Favorites and Tracks categories have a special Last Modified folder. Since the list in these categories can be very large as it contains all your existing favorites or tracks, this folder is necessary for easy and quick access to your most recent destinations.

Navigation Features

In addition to the basic features of the OsmAnd app in Android Auto that provide convenient navigation in your vehicle, there are a number of additional features that enhance the user experience and make navigation more personalized, comfortable, and efficient.

Next Turn & Route Info

Next turn widget displays distance and type about next turn maneuvre and street name.

Route information consists of estimated time of travel, estimate time of arrival and distance to travel.

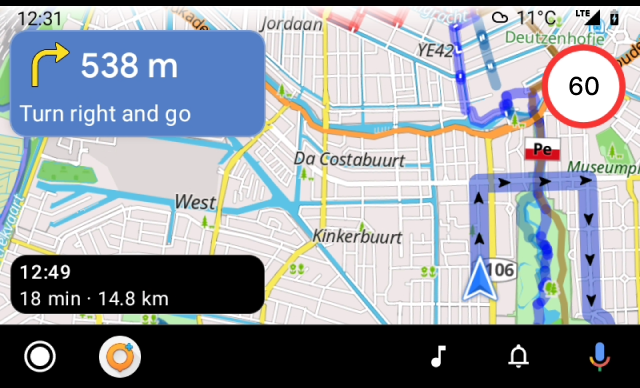

Screen Alert Widget

This information widget combines alert types such as Pedestrian crosswalks and Speed Limit.

• The types of alerts have different appearance, which depends on the Driving region and can be configured in Menu → Configure profile → Navigation settings → Screen alerts.
• In Android Auto it is not possible to set the display of alerts, you need to configure the widget in the application before starting the navigation and connecting your device to the vehicle.
• For a detailed description of the alert types, see this article.
• To set up screen alerts for available profiles, see the article Navigation settings.

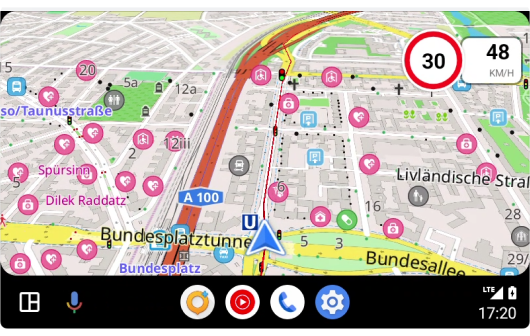

Speedometer

Speedometer widget is an integrated interface element that displays current speed using GPS data and speed limit from the OSM database and OsmAnd settings on the vehicle's multimedia system screen.

• The Speedometer widget is profile dependent, so if you change the settings for one profile, they will not be applied to another.
• There is no option to customize the display of the Speedometer widget directly in Android Auto, you need to configure it in OsmAnd app before starting navigation and connecting your device to the vehicle.
• For more information on how to add and configure the Speedometer widget to the display, please read the Informational widgets article.

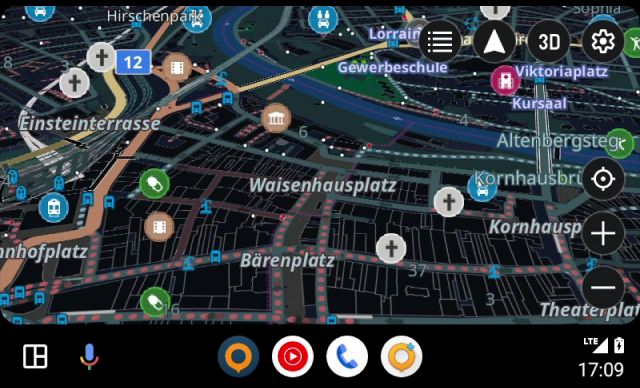

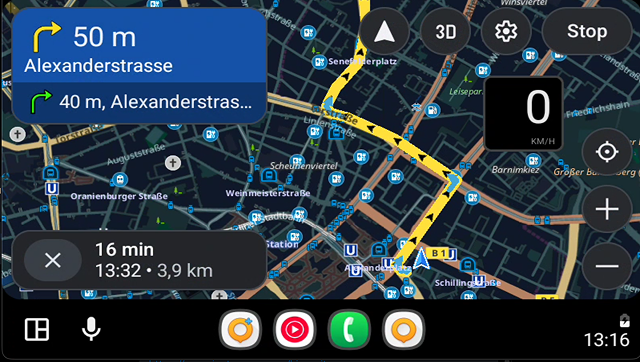

Map Appearance (3D)

The OsmAnd app allows you to use the 3D map view on the Android Auto screen to display your route and navigation.

• To enable this feature, you need to select Map rendering Version 2 (OpenGL).
• Open the main Menu → Settings → OsmAnd settings → Map rendering engine directly in the OsmAnd app.
• After configuring the settings, the 3D button will be displayed on the Android Auto screen when the category list for destinations is closed.
• You can switch between 3D / 2D map modes by tapping this button.

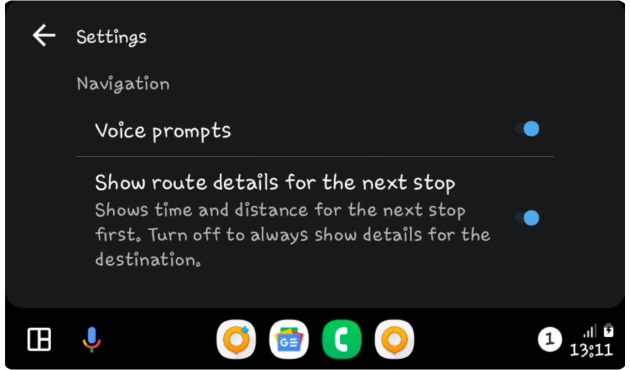

Voice Prompts

Voice prompts are one of the most useful features of OsmAnd while navigating for Android Auto, giving you real-time guidance and allowing the driver to stay focused on the road. Voice prompts provide clear instructions on turns, directions, and other navigation instructions, providing a safer and more comfortable use of the navigation system.

To configure voice prompts according to the selected profile, you have to do this before starting a route in the OsmAnd app on your device. In Android Auto, only the setting to turn all selected voice prompts off or on at the same time is available.

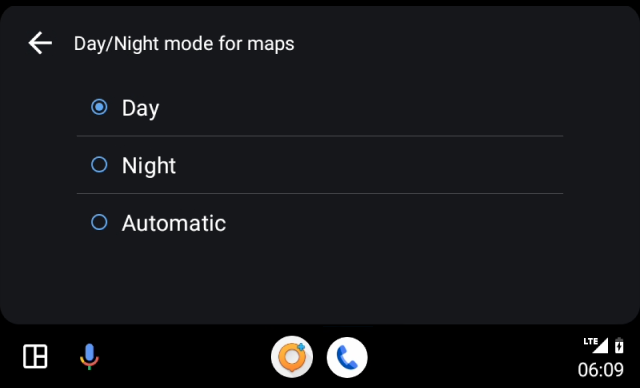

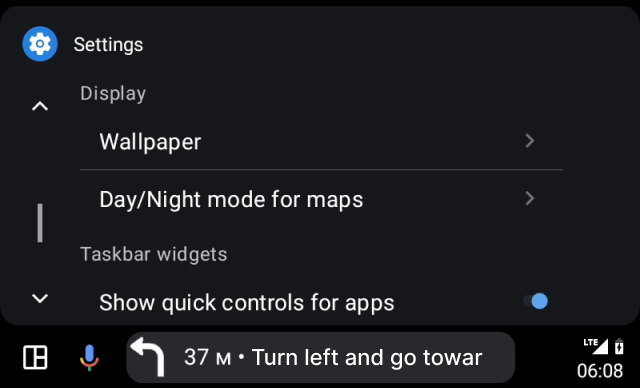

Map Mode

Android Auto and OsmAnd offer the ability to adjust the map to match lighting conditions. In Day map mode, the color scheme remains bright and contrasting, making it easier to read even in bright sunlight. In Night mode, the maps become darker, which helps the driver navigate better in the dark.

OsmAnd has map mode options, but when you use the app in Android Auto, these options are ignored. Instead, the mode you selected in the Android Auto system settings for maps is used.

• You can choose to always display the map in Day mode.
• You can select Night mode.
• If you want the map display mode to switch depending on the time of day, select Automatic mode.

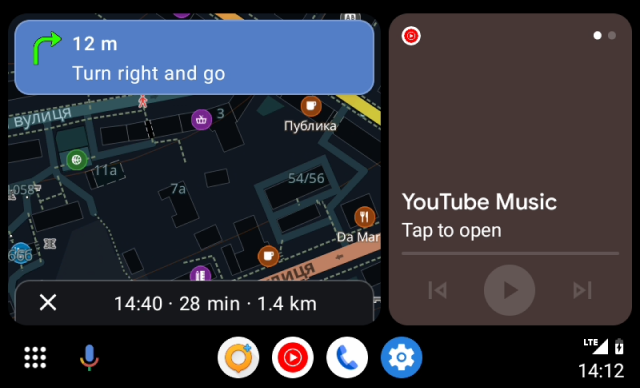

Split-Screen

The OsmAnd app can be opened and used to navigate in Android Auto on the vehicle multimedia system screen simultaneously with music, message or other notification apps. Setting up the split-screen display on a phone connected to Android Auto or on the screen in your vehicle system.

1. From Home screen, tap Apps.
2. Tap Settings.
3. Find Multi window and choose switch.
4. Return to the home screen.

Issues

1. Map orientation issue

2. Volume control issue

3. Location delays (ANR crashes)

This article was last updated in May 2024
